T238 - High Torque & Speed AEG Brushless Motor Long Type

HIGHLY EFFICIENT. DURABLE AND RELIABLE.

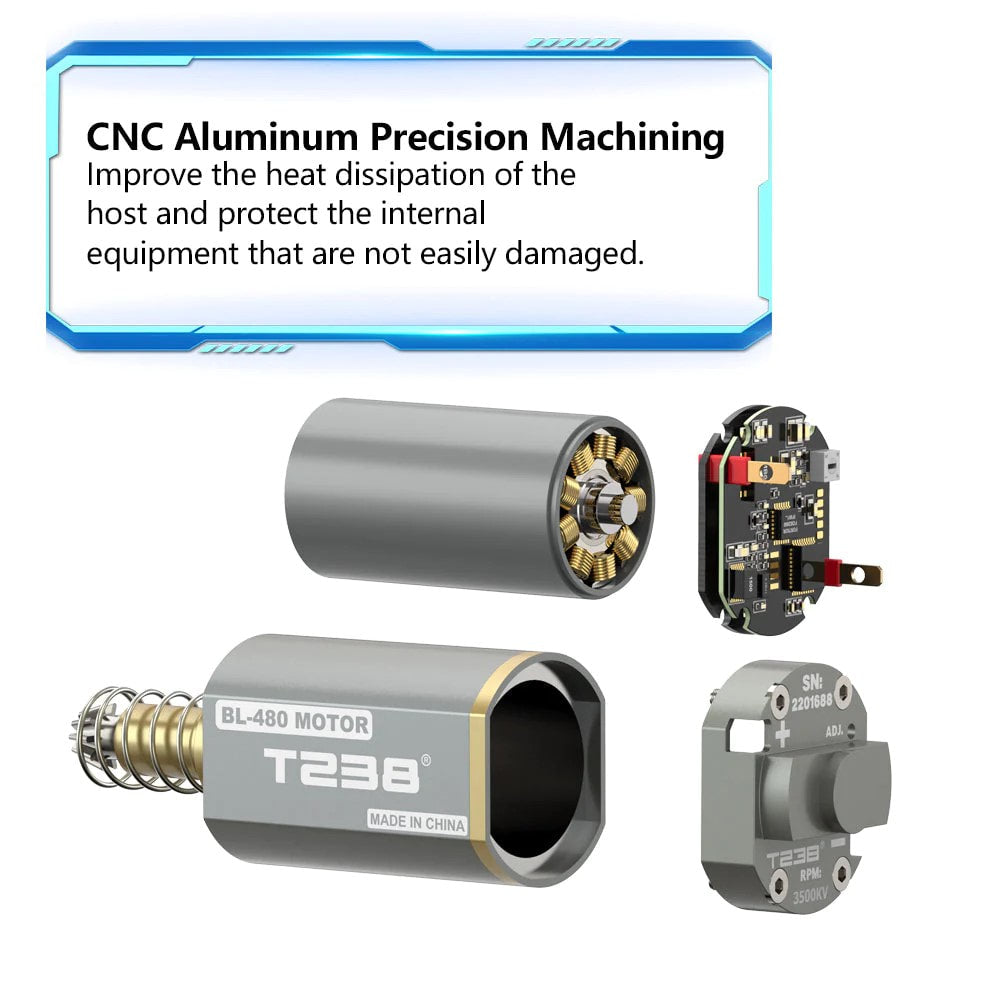

✔Motor body material: CNC Aluminum precision machining

✔Motor gear: D type

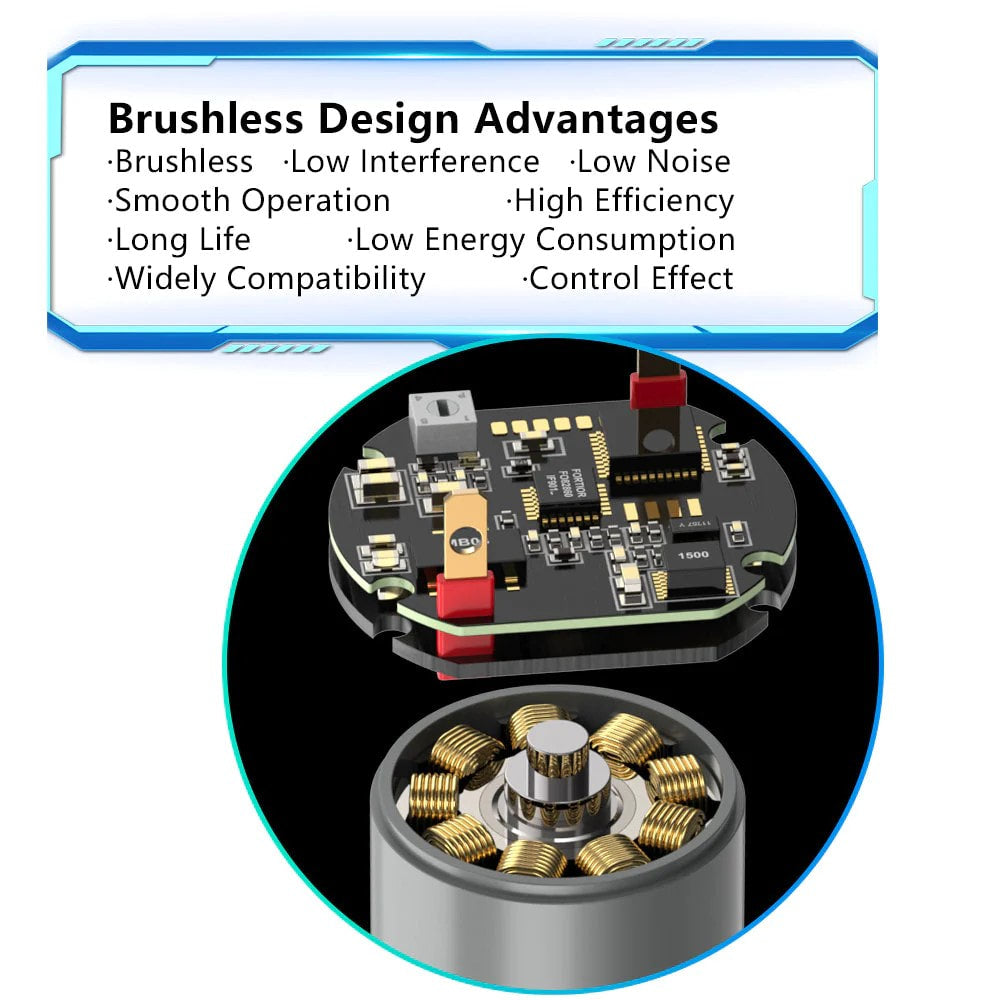

✔Brushless, low heat at high output

✔Long service life, battery temperature

✔Emergency stop after power failure, no buffer, stable output

✔Overheat protection, low voltage protection, locked rotor protection

✔Stepless speed regulation (range 50-100%) can be adjusted through the potentiometer of the small hole in the tail cover.

• Do not use ETUs of other brands!
• Do not power the motor in an unloaded state!
• Do not reverse connection of positive and negative poles!
• Do not use batteries greater than 12.6V!

Warning! This brushless motor is best to use T238 brand ETU/MOSFET, not compatible with other brands of ETU/MOSFET, if the use of other brands of ETU/MOSFET causes motor failure, no warranty.

Specification：

Maximum power: 380W

Input voltage: 7.4-16.8V

11.1V voltage state

No load:

Speed: 33000rpm

Current: 1.8AMP

Load:

Speed: 28500rpm

Current: 20A

Compatibility :

Long Axis fits for M4/M16/MP5/G3/P90 series and other long type motor Airsoft AEG

Short Axis fits for AK/G36/AUG series other short type motor Airsoft AEG

Package including：

1 X brushless motor

1 X screwdriver
